Boroscopy Inspection

Shape, Dimensions and Full Passability

Overview

The boroscopic inspection functionality enables automated inspection of hard-to-reach or extremely small internal areas using industrial borescopes. It combines multiple inspection steps to verify internal features such as micro-channels, ensuring correct shape, dimensions, cleanliness, and full passability, even in confined or non-visible spaces.

Why It Matters

Some critical components, especially in medical, chemical, or precision manufacturing, have internal structures that are otherwise impossible to inspect. Defects such as blockages, burrs, or malformed channels can compromise function, safety, and compliance. This module provides precise internal verification that would be impossible or unreliable to perform manually.

Where It’s Used

  • Healthcare / Medical
  • Chemical Production
  • Food and Beverage
  • Biolabs
  • Automotive
  • Aerospace

Capabilities

  • Inspection of internal micro-channels using industrial borescopes
  • Verification of presence and correct shape of channel geometry
  • Dimensional control (width, length, consistency)
  • Passability check across full channel length
  • Detection of contamination: burrs, chips, residual particles
  • Custom rules and tolerances per product and zone

How It Works Together

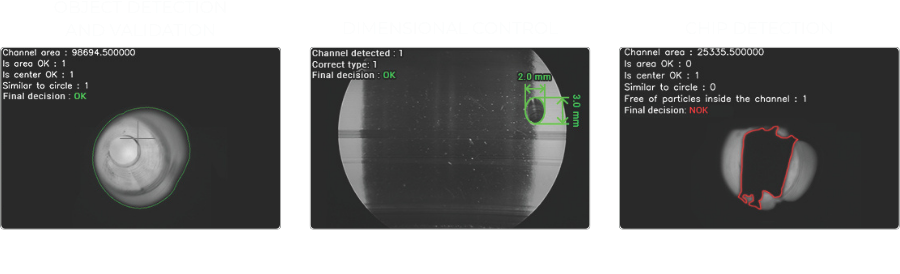

The system uses a borescope to visually scan internal structures, even in narrow, inaccessible areas. Each inspection is guided by a template that defines zones and expected features.

  • Presence and shape of internal channels
  • Correct dimensions
  • Full passability
  • Presence of foreign particles (e.g., metal shavings, dust)

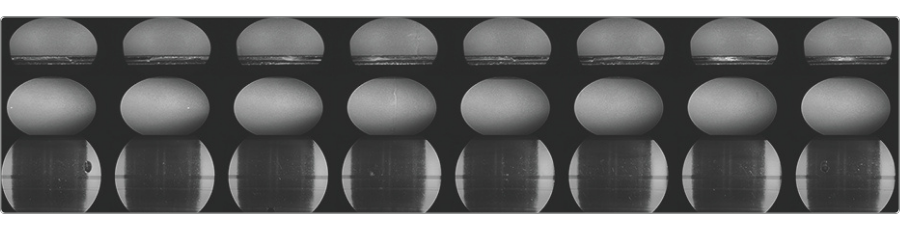

Multiple inspections are combined into one automated routine to ensure even hidden or complex areas are verified with high precision.
This minimizes risk of hidden defects, increases quality assurance, and supports compliance in sensitive industries.

Example Use Case

A manufacturer of medical-grade valves uses the functionality to verify each micro-channel. Inspection templates define multiple measurement points and zones along each channel. The system checks for correct shaping, verifies internal cleanliness (e.g., no burrs or particles), and confirms full pass-through visibility. This eliminates the risk of blocked or faulty components reaching patients or downstream systems.
