Geometric Measurement

Precise Visual Measurement of Dimensions, Distances, and Angles

Overview

This module performs precise geometric measurements based on visual input. It detects objects automatically on the scanned image and evaluates dimensions, angles, and distances according to pre-set tolerances.

Why It Matters

Incorrect orientation or dimensional inaccuracies can lead to malfunction, incorrect assembly, or quality rejection. The module ensures that parts conform to design specifications, especially in complex or assembled products.

Where It’s Used

  • Healthcare / Medical
  • Chemical Production
  • Food and Beverage
  • Biolabs
  • Automotive
  • Aerospace

Capabilities

  •  Automated detection of measurement targets
    • Measurement of:
    • Object width, length, diameter
    • Angles and tilts
    • Distance between defined features
  • Tolerance-based OK/NOK evaluation
  • Multi-point measurement across one or more objects
  • Works on raw components and final assemblies

Automated Gap & Angle Measurement with Sub-Millimeter Precision

Connector Alignment & Gap Inspection

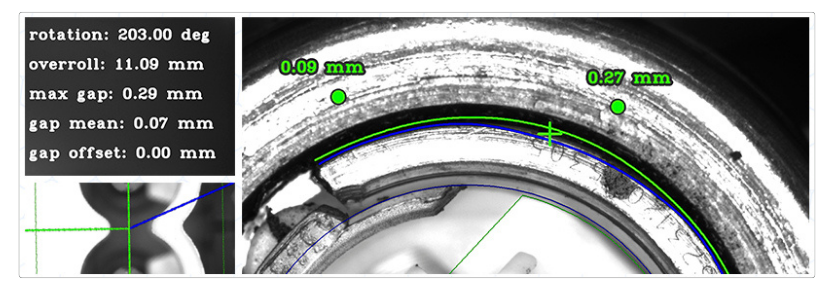

This module evaluates the geometric conformity of circular components, such as electrical connectors, by measuring distances, rotation, and angular offsets. Using calibrated imaging and AI-aided analytics, it determines gap values at multiple critical points around the inner circumference of the connector housing.

Example Use Case

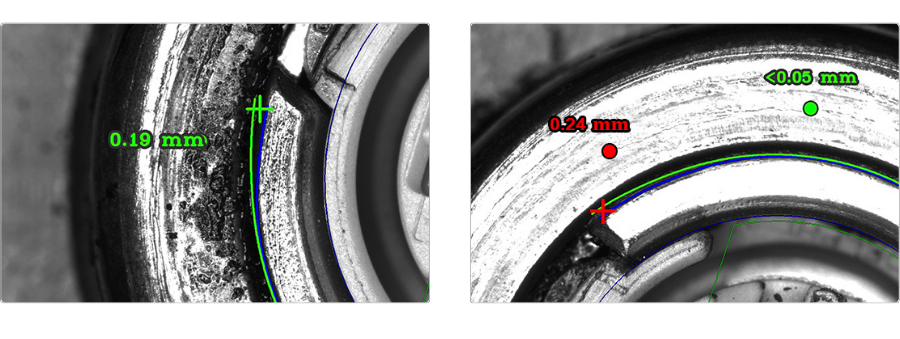

A connector needs to be mounted at a specific rotation angle. The module verifies the exact orientation and flags any parts with excessive tilt. Simultaneously, it measures distances between pins and housing features, ensuring compliance with tight tolerances.
